Ultrasonic ribbon Slitter

Brief introduction:Ultrasonic ribbon slitting machine is mainly used for cutting and slitting ribbon and other materials, including polyester, polyamide, nylon, man-made fabric and other belt fabrics.

Detailed description

Application
 Ultrasonic ribbon slitting machine is mainly used for cutting and slitting webbing, trademark tape and other materials, including polyester, nylon, nylon, artificial fabrics and other tape fabrics.

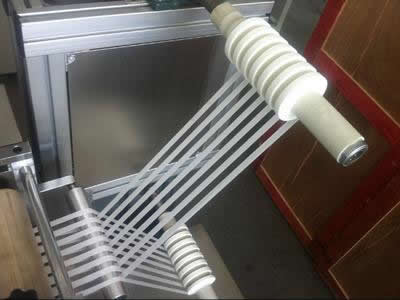

  • Ultrasonic ribbon slitting machine

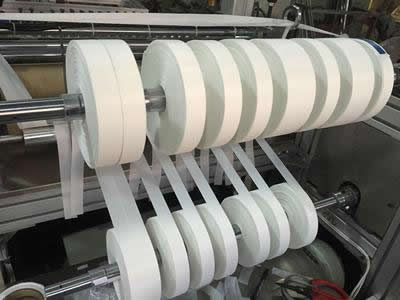

  • Ultrasonic ribbon slitting machine

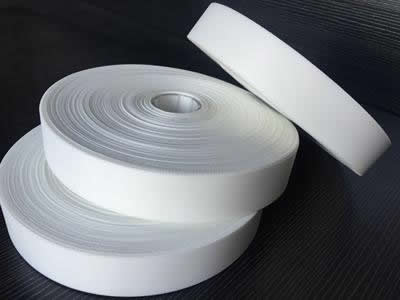

  • Ultrasonic ribbon slitting machine

parameter

Operating Voltage220V
input power3KW
Maximum unwinding diameter300mm
Maximum unwinding width400mm
Minimum slitting width10mm
The fastest cutting speed30m/min
Air shaft diameter3inch
Dimensions (L×W×H)1500*1500*1400mm
net weight600KG

Features

  • The equipment uses aluminum alloy material, which has high stability during high-speed operation, which effectively improves the durability of the machine and its service life;
  • The slitting speed is controlled by a frequency conversion motor, the slitting width can be adjusted at will, and the minimum slitting width is 10mm;
  • The slitted fabric is stable and tidy, the tension of the winding fabric is controlled by the magnetic powder clutch, and the tension can be adjusted at will;
  • The unwinding tension is controlled by the magnetic powder tension, and the feeding is uniform, which improves the smoothness and cleanliness of the cut;

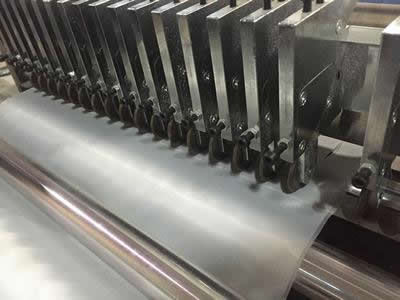

  • Ultrasonic cutting, no burrs, no scorching, no discoloration;
  • The ultrasonic ribbon slitting machine adopts air expansion shaft to rewind/unwind, and is equipped with automatic correction device.
  • Equipped with meter counting device, with meter counting function, and can realize automatic shutdown of fixed length.
