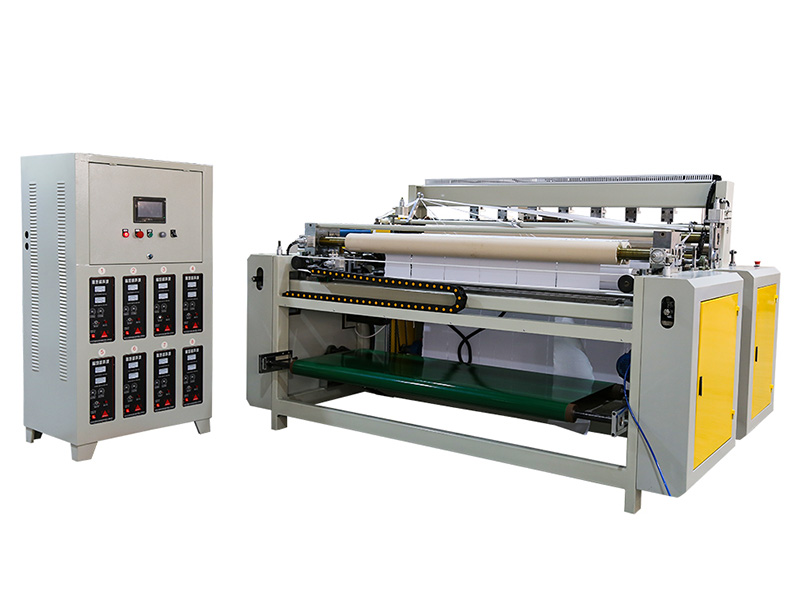

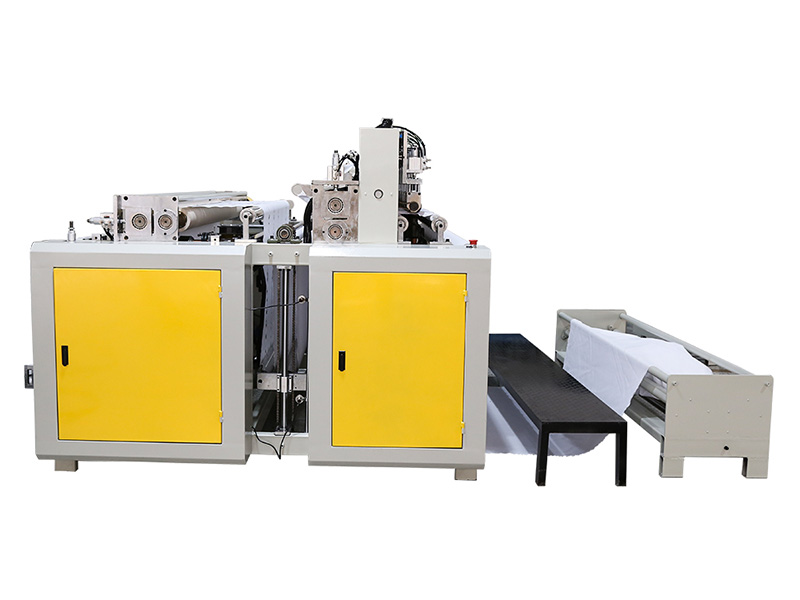

Ultrasonic slitting machine

Brief introduction:The ultrasonic Wide Strip Slitting machine is suitable for slitting and winding towel cloth, eyeglass cloth, dust-free cloth, floor mop, antistatic cloth, polyester cloth, medical mattress, etc. The slitting width can be adjusted at will, and the minimum slitting width is 100 mm.

Detailed description

Application
 This ultrasonic wide strip slitting machine is suitable for slitting and rewinding towel cloth, glasses cloth, dust-free cloth, floor mop, anti-static cloth, polyester cloth, medical mattress, etc. The slitting width can be adjusted at will, and the minimum slitting width is 100mm.

  • Ultrasonic slitting machine (wide strip)
  • Ultrasonic slitting machine (wide strip)

parameter

Operating Voltage220V
input power5KW
Maximum unwinding diameter400mm
Maximum unwinding width1600~3000mm
Minimum slitting width150mm
The fastest cutting speed30m/min
Air shaft diameter3inch
Dimensions (L×W×H)2000*3500*1700mm
net weight1500KG

Features

  • The wide strip ultrasonic slitting machine adopts steel structure, which has high stability during high-speed operation, which effectively improves the durability of the machine and its service life;
  • The slitting speed is controlled by a frequency conversion motor, and the slitting width is adjustable at will. The minimum slitting width is 100mm;
  • The tension of the rewinding fabric is controlled by a magnetic powder clutch, and the tension can be adjusted at will; you can choose to rewind with single shaft or double air shaft;
  • The unwinding tension is controlled by the magnetic powder tension, and the feeding is uniform, which improves the smoothness and cleanliness of the cut;
  • The ultrasonic slitting machine is equipped with a meter counting device, which has a meter counting function and can automatically stop at a fixed length;
  • The air expansion shaft is unwinding, equipped with manual correction device or optional automatic correction device, which can effectively ensure the straightness of the incision.
  • Ultrasonic cutting has no burrs, scorching, and discoloration.
  • Diverse cutting styles such as: straight edge, serrated edge, wave lace, etc.
