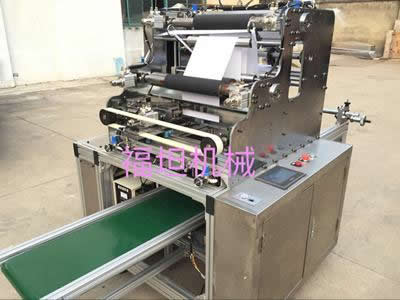

Ultrasonic cross cutting machine

Brief introduction:Ultrasonic cross cutting machine is mainly used for cutting towel cloth, eyeglass cloth, dust-free cloth, anti-static cloth, headrest and other products. The cutting width can be adjusted at will, and the minimum slitting is 15cm.

Detailed description

Application
 Ultrasonic cross-cutting machine is mainly used for cutting towel cloth, glasses cloth, dust-free cloth, anti-static wipes, head cushion and other products. The cutting width can be adjusted at will, and the minimum cutting is 15cm.

There are various slitting styles such as: straight edge, zigzag edge, wave lace, small round edge, etc. The equipment has a wide variety of models, and we can tailor it to customers according to their needs.

  • Ultrasonic crosscutting machine
  • Ultrasonic crosscutting machine
  • Ultrasonic crosscutting machine

parameter

Operating Voltage220V
input power2KW
Maximum unwinding diameter400mm
Maximum working width200mm
Fastest cutting speed30m/min
Dimensions (L×W×H)1500*1500*1500mm
net weight600KG

Features

  • The cutting length of the ultrasonic crosscutting machine is controlled by liLC, the length can be set freely, the maximum length is 80cm;
  • The cutting edge speed is controlled by a frequency conversion motor, and the speed is matched at will; the cutting width is adjustable at will, the minimum is 15cm;
  • The equipment adopts aluminum alloy structure, which has high stability during high-speed operation, which effectively improves the durability of the machine and its service life;
  • The tension of the unwinding fabric is controlled by mechanical tension; the feeding process is uniform, which improves the smoothness and cleanliness of the cut;
  • Equipped with a counting device, which can realize the function of automatic shutdown at a fixed number
  • Ultrasonic cutting has no burrs, scorching, and discoloration.
