Pneumatic & Cross Horns Big Roller Air Conditioner Ultrasonic Quilting Machine
Detailed description
Describe
ultrasonic sewing machine equipment, using the principle of ultrasonic for needle-free wireless operation, bonding and embossing various types of fabrics such as chemical fiber fabrics, non-woven fabrics, spray cotton, artificial leather and other fabrics.
The machine is simple and convenient to operate, the pattern is clear and beautiful, the fabric is not deformed, the adhesion is firm and there is no pinhole, and the production efficiency is high.
The flower sticks can be replaced at will according to the customer's needs, and then different patterns and different effects can be pressed out. It is an ideal equipment for producing bed covers, bedspreads, pillowcases, duvet covers, sofas, car cushions, clothing and luggage.
Sample display
parameter
| model | Operating Voltage | Effective width | Machine size | net weight |
| JT-1000-S | 7KW 380V 3 phase (220V) | 1000mm | 5x1.5x1.8m | 1500KG |
| JT-1500-S | 7KW 380V 3 phase (220V) | 1500mm | 5x2x1.8m | 1700KG |
| JT-1800-S | 8KW 380V 3 phase (220V) | 1800mm | 5x2.3x1.8m | 1900KG |
| JT-2300-S | 8KW 380V 3 phase (220V) | 2300mm | 5x2.8x1.8m | 2500KG |
| JT-2600-S | 9KW 380V 3 phase (220V) | 2600mm | 5x3.1x1.8m | 2700KG |
| JT-2800-S | 9KW 380V 3 phase (220V) | 2800mm | 5x3.3x1.8m | 3000KG |
| JT-3000-S | 10KW 380V 3 phase (220V) | 3000mm | 5x3.5x1.8m | 3200KG |
Configuration
- This machine adopts a new type of ultrasonic control box with strong and stable power, suitable for long-term continuous operation.
- Built-in multi-channel ultrasonic protection system to ensure the safe and stable operation of the host.
Whole machine composition: embossing composite host, ultrasonic control cabinet, finished product winding machine, fabric placing rack

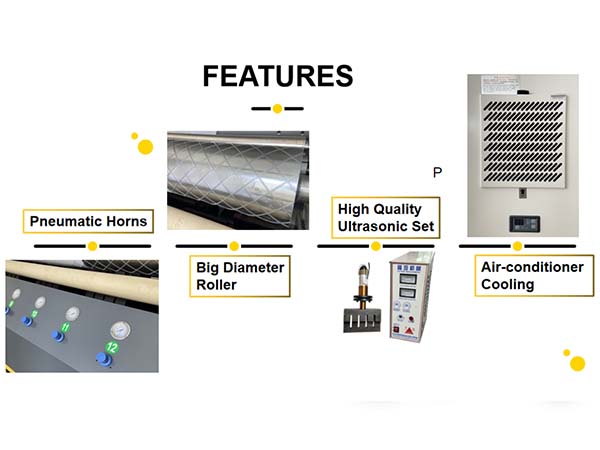

Features
- The sewing machine is equipped with a professional air cylinder lifting system, working steady, easy to adjust the pressure on horn, get best result.
- Eliminate the trouble of threading and threading traditional stitching fabrics, using the wireless quilting technology developed by Fortan.
- The stitching width varies from the minimum to 3500mm, and any pattern can be made by changing the pattern roller.
- The life span of the high-tech processing program Horn is four times more durable than the traditional thin Horn.
Adopting the whole original imported vibrator, the sound wave is strong, and the stitching effect is better.
Instead of normal fan cooling, we use air conditioner cooling on the machine.
The operation is simple, the stitching strength is high, and the production efficiency is high.
Customer can also buy the auxiliary device to help install and stock the spare roller, easy to operate and safe when working.
