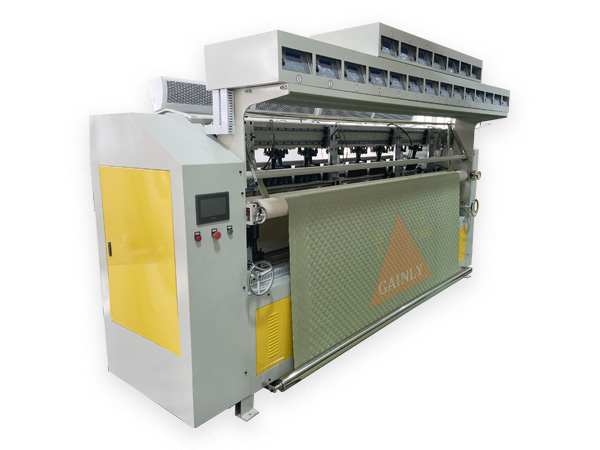

Full Auto High Power 15Khz Ultrasonic Quilting/Bonding Machine
Detailed description

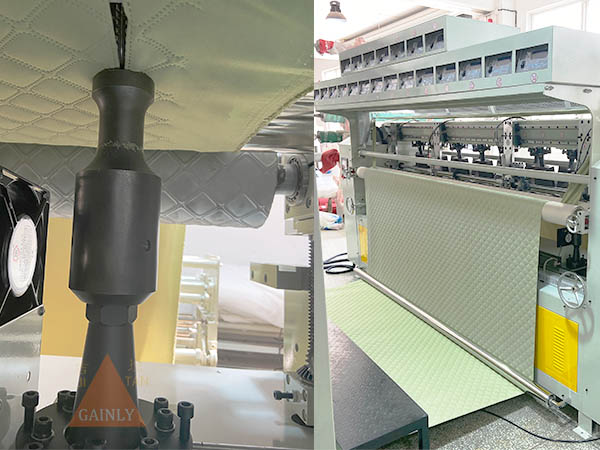

Full Auto High Power 15Khz Ultrasonic Quilting/Bonding Machine
Features:
1-Adopt ultrasonic technology to weld and stitch the fabric together without needle and thread.
2-Self produced ultrasonic system, high efficiency and steady working, after-sales guaranteed.
3-15Khz can bring high speed and high productivity, strong welding strength, stable quality.
4- Different rollers and patterns can be designed according to different material and different products requirements.
5-Easy to operate by touch screen, one person could handle whole machine working, easy to maintain.
6-Structure of machine 1) Fabric feeding rack 2) Pattern press compound machine 3) fabric cross cutter device.
Applications:
Producing the compounding of spout gum cotton, non-woven fabrics and needle cotton with chemical fiber fabrics, artificial leather products. It is applied to the production of mattress, multi-cover, bedcover, bed sheet, blanket, seat cushion, winter jacket, robes, polo cases, apron, sleeping bag, show jacket, car seat cover, sofa, etc.
Suitable Materials:
Fabrics of synthetic composition over 30%, polyester,nylon, tetoron, sponge, non woven fabric, thermo-plastic film, compounding of spout gum cotton, artificial leather, TC,PU,PP, PE, etc.
Parameters:
Name: | Full Auto Ultrasonic Quilting Machine | Working Speed: | 0-15m/min |
Voltage: | 380V/220V 3 phase | Effective Width: | 3000mm |

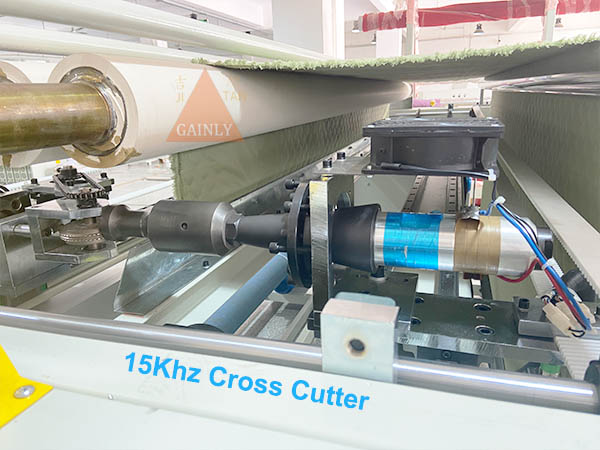

Output(Kw): | 9Kw | Cutter Qty: | 4 vertical cutters 1 cross cutter, both ultrasonic type |
Max quilt thickness of middle cotton: | Around 600gsm (for simple pattern) | Frequency: | 15Khz |

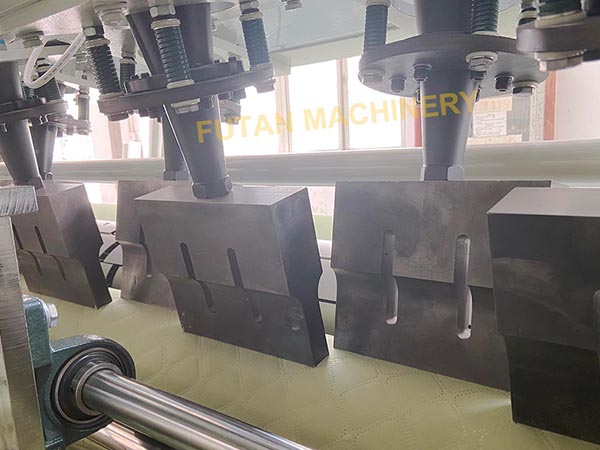

Horn Design: | Cross horn | G.W(kg) | 3800kg |
Working Place: | Suggest 6x8m | Warranty: | 1 Year |
Support Custom Cutter Designs and Materials:

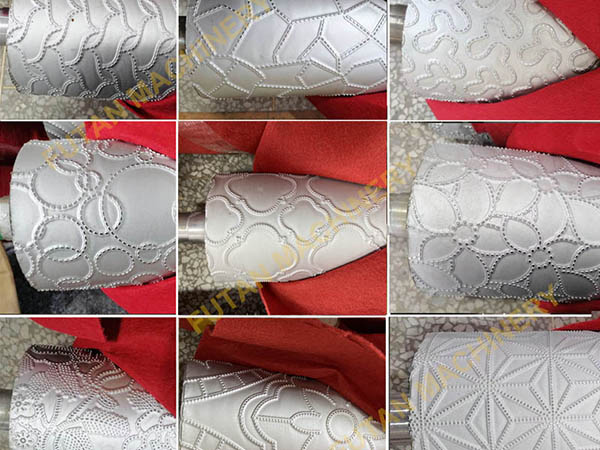

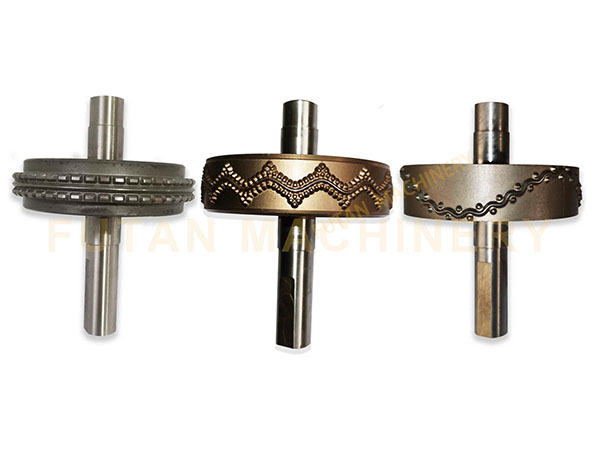

Support Custom Standard Depth Rollers and Carving Rollers(2.5-6mm):
