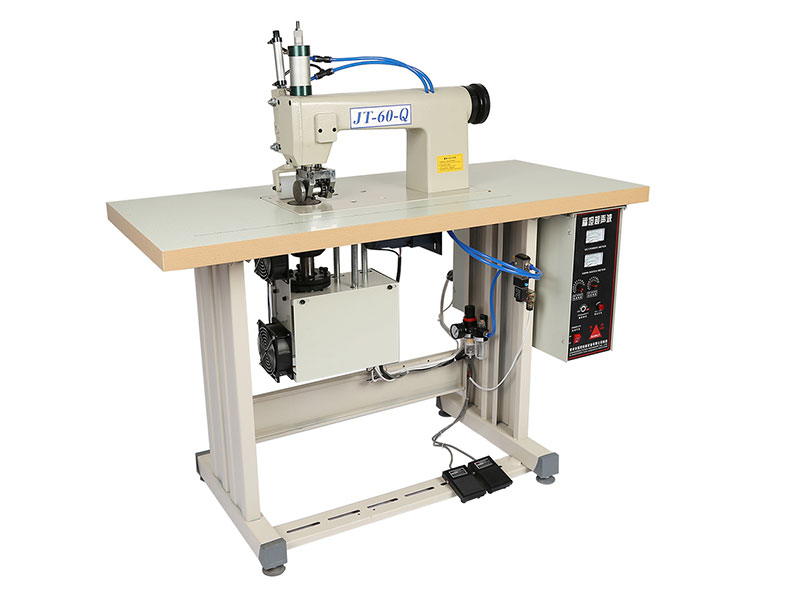

Jt-60-Q/2Q ultrasonic surgical gown sewing machine

Brief introduction:Jt-60-s the machine is operated at four times the speed of the ordinary sewing machine, and it is easy to operate. It is suitable for making lace dress, ribbon, decorative products, handkerchief, tablecloth, curtain, bedspread, pillow cover, quilt cover, tent, disposable surgical clothes, non-woven shopping bag, nonwoven fabric and other articles.

Detailed description

 JT-60-Q, the running speed of this model is four times that of ordinary sewing machines, and the operation is simple. Suitable for making lace garments, ribbons, decorative products, handkerchiefs, tablecloths, curtains, bedspreads, pillowcases, duvet covers, tents, disposable surgical gowns, non-woven shopping bags, non-woven fabrics and other supplies.

Applicable materials: chemical fiber cloth, artificial leather, non-woven fabric, spray cotton, thermoplastic film, chemical plastic sheet, etc.


Operating Voltage220V/110V
Input power1800-2500W
Output frequency20KHZ
Running speed0-20m/min
Pattern sizeWidth: 0-60mm; Diameter: Ø50mm
Dimensions (length * width * height)1200*600*1200mm
net weight90KG


  • Intelligent ultrasonic generator;
  • 20KHz ultrasonic transducer device
  • Single/double motor speed control system
  • Manual (or optional pneumatic) pattern lifting system;


  • Trimming: Single-sided straight or curved cutting, and edge melting treatment, so that the edge is smooth, not rough, and without burrs;
  • Stitching: Two or more layers of fabrics are stitched together, wireless needleless instead of sewing, and good welding strength;
  • Hole-cutting: Cut out holes of various patterns and do edge melting treatment;
  • Stripping: Single or multiple strips of the material can be opened and cut at the same time, and the edges should be melted without burrs;
  • Forming: Cutting, stitching, and embossing at the same time, so that the product is formed at one time.

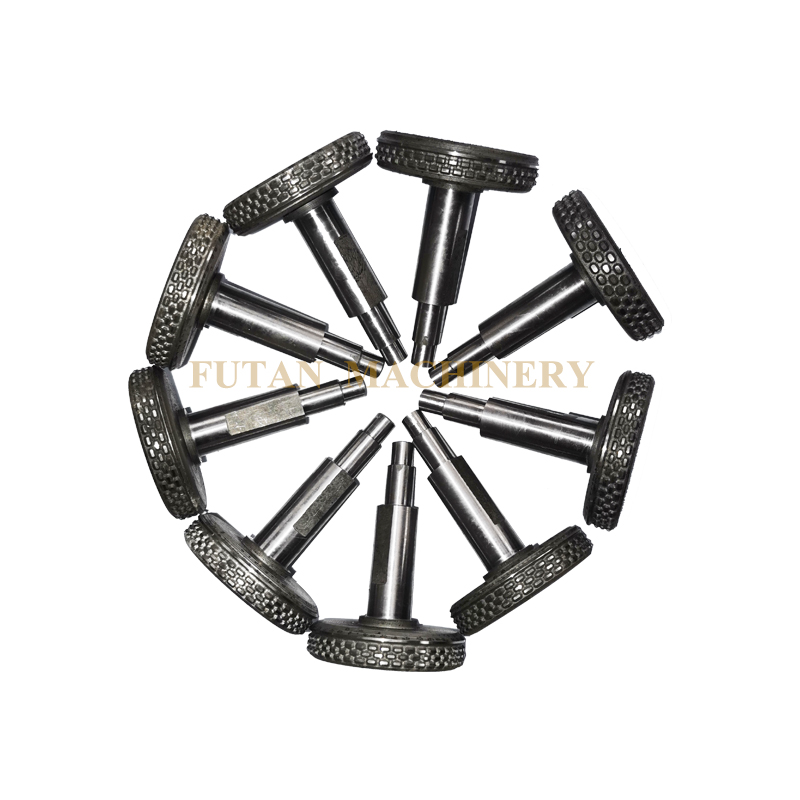

  • There are various patterns of patterns, and designs can be provided according to customer needs;
  • Super power output, with two levels of adjustable power, suitable for welding and cutting requirements of different materials and thicknesses;
  • Built-in computer chip and multi-channel ultrasonic protection system to ensure the safe and stable operation of the host;
  • The application of automatic frequency tracking system and ultrasonic soft start technology makes this machine powerful.

Sample display

  • JT-60-S 超声波缝纫机
  • JT-60-S 超声波缝纫机
